Lane

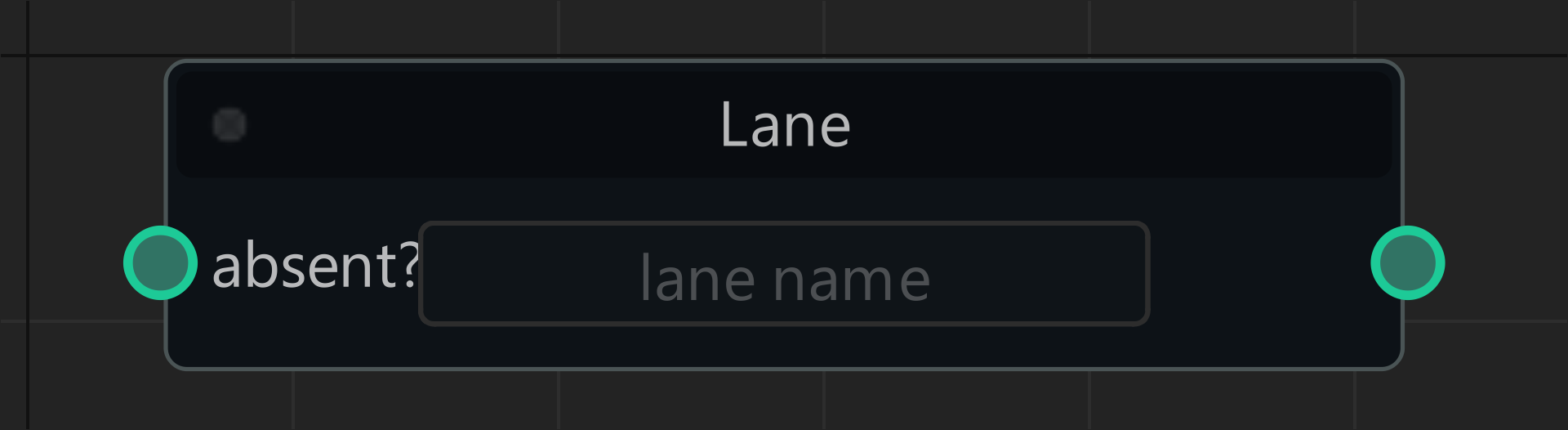

The lane node is used to configure a channel to output the values that a given lane takes during a shot.

../../../_images/lane_node.png

The cell in the lane node should be the name of the lane that should be output.

If there is no lane with the given name for the current sequence, the lane node will output what is on its input port. If there is also nothing connected to the input port, an error will be raised.

Example

In the example below, the output is configured to output the values of the lane “lane 1”.

../../../_images/lane_graph.png

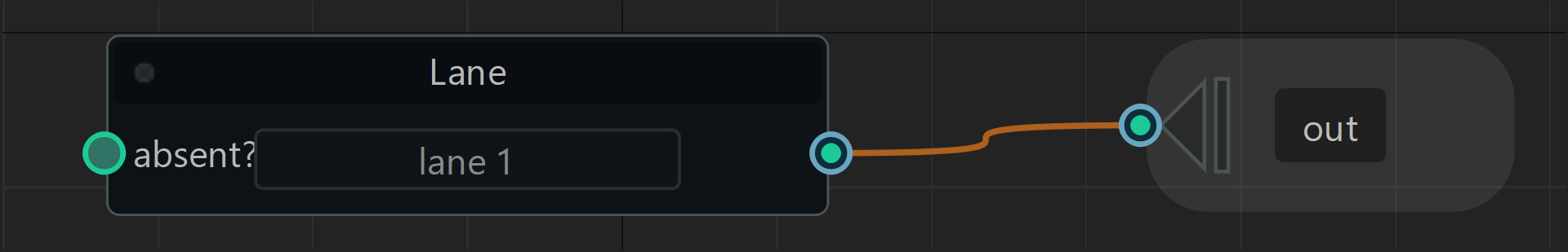

Configuration of the channel.
../../../_images/lane_time_lanes.png

Time lanes for the sequence under consideration.
../../../_images/lane_plot.png

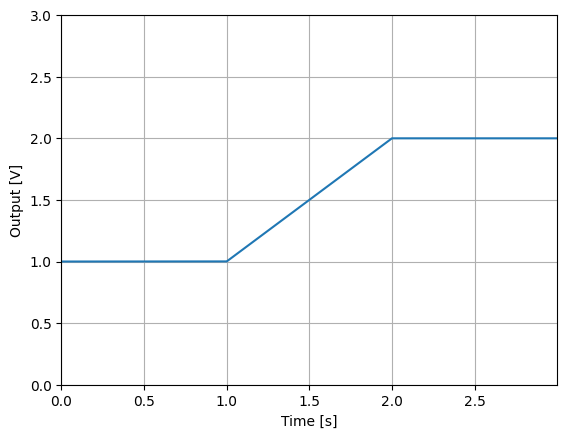

Output of the channel.
